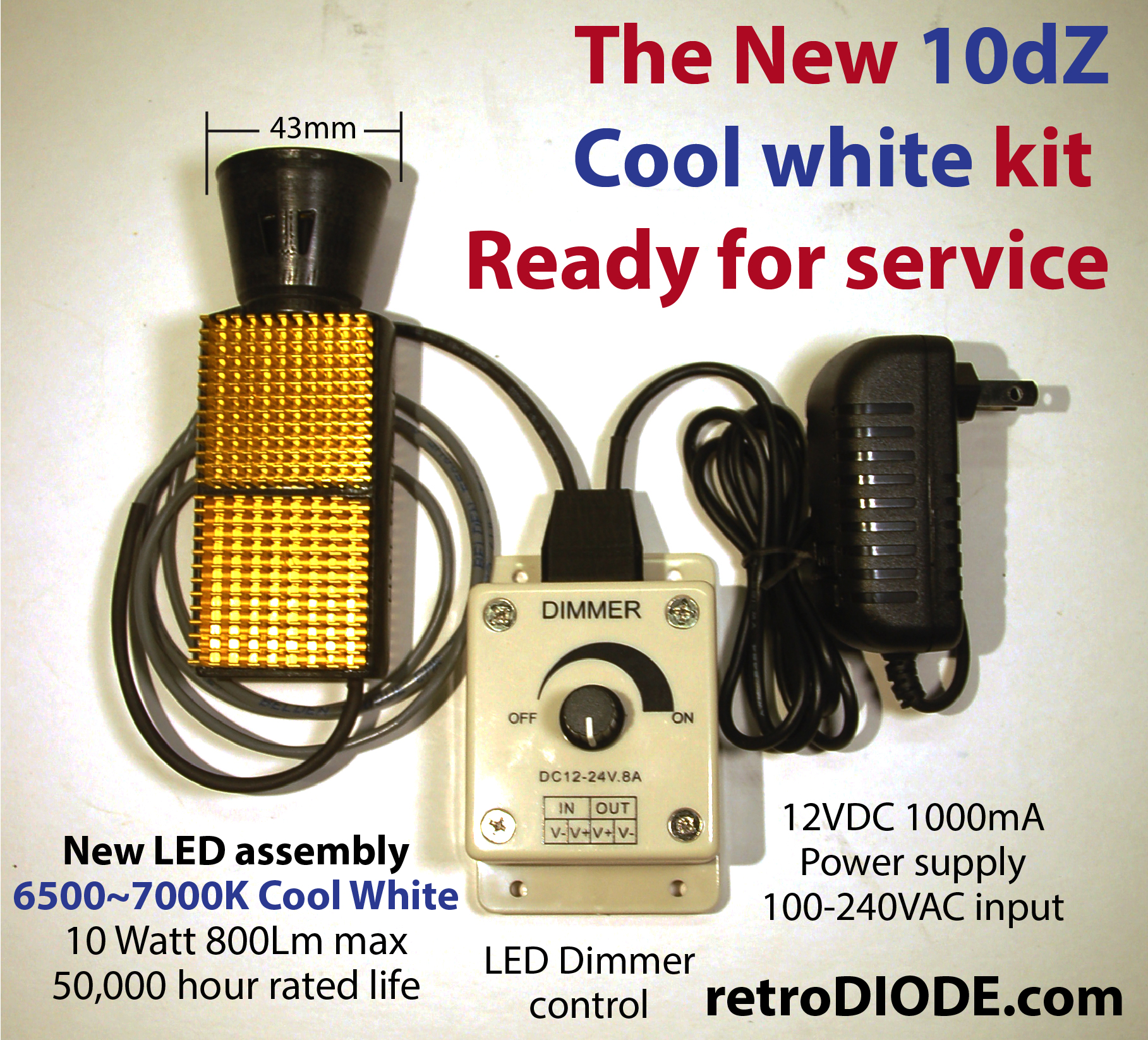

- Dimmer control box.

- 100 to 240 VAC 50-60hz input Power supply.*

Note* Power supply has a USA plug configuration.
For other countries:
Only an inexpensive plug adapter is needed.
No power conversion is required.
We do not sell plug adapters with the kit.
They are very inexpensive. To order on ebay click the following:
(click here for more on plug adapters)

Zeiss and their consistency:

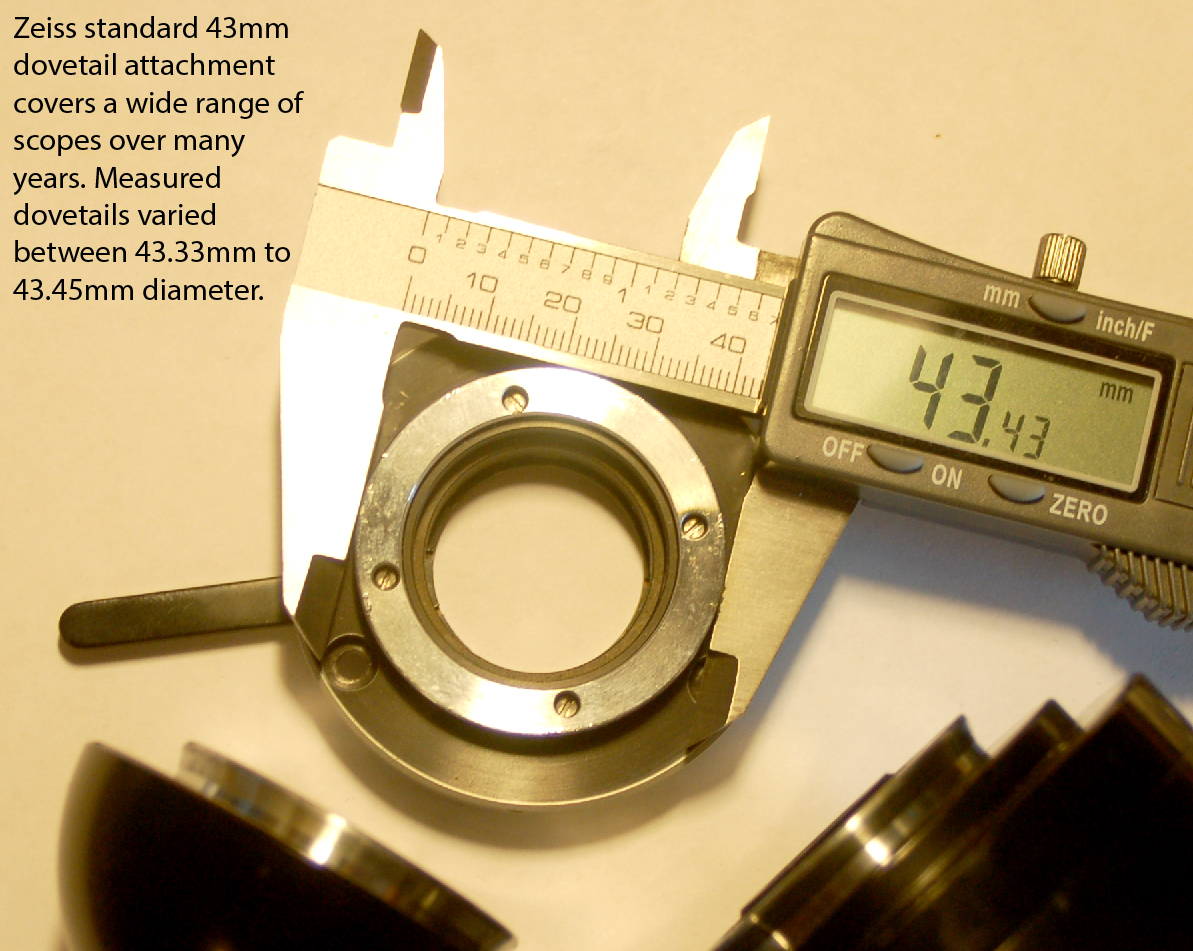

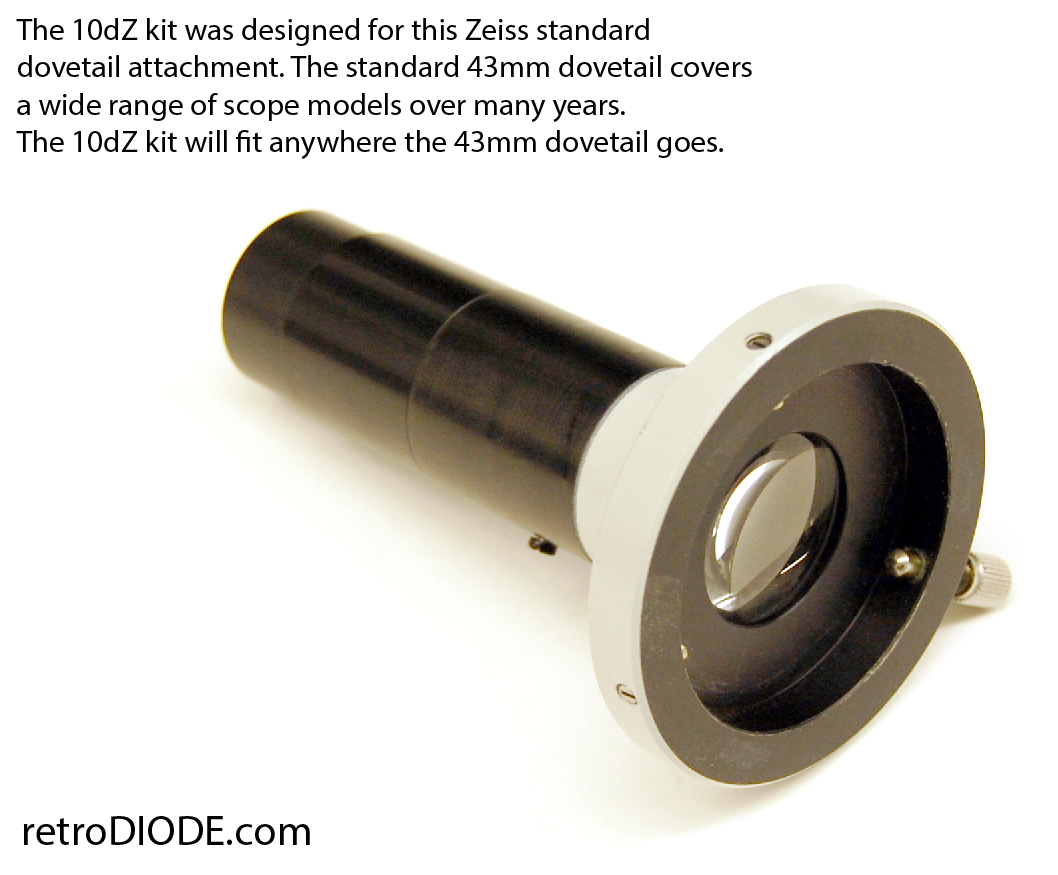

The depicted illuminator dovetail port (top right image) is a standard 43mm diameter dovetail that covers a wide range of upright and inverted scopes for many years. If your illuminator port looks like this one or uses the depicted lamp and/or fits the standard 43mm dovetail then our 10dZ kit will fit.

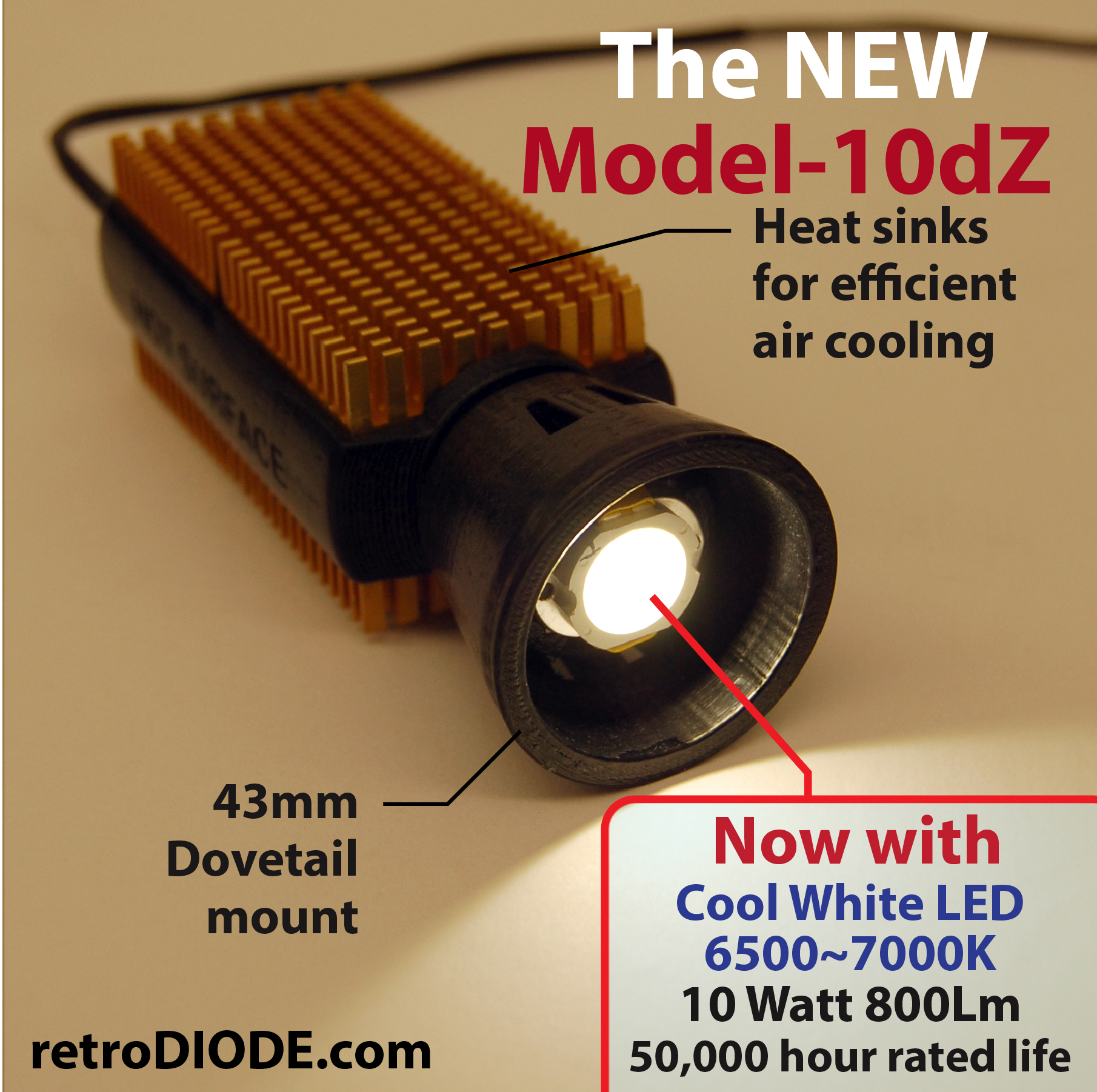

Efficient & bright:
No wasted light from an inefficient bulb or lack of reflectors. The LED chips in the 10dZ illuminator face forward to the collector optics inside the mount so you are utilizing more of the light generated by the LED.

Fits a variety of scopes:
-PM I, II, & III
-WL
-Standard
-Universal
-IM/ICM
-& more with the dovetail mount.

See photos---
Click on photos to enlarge
