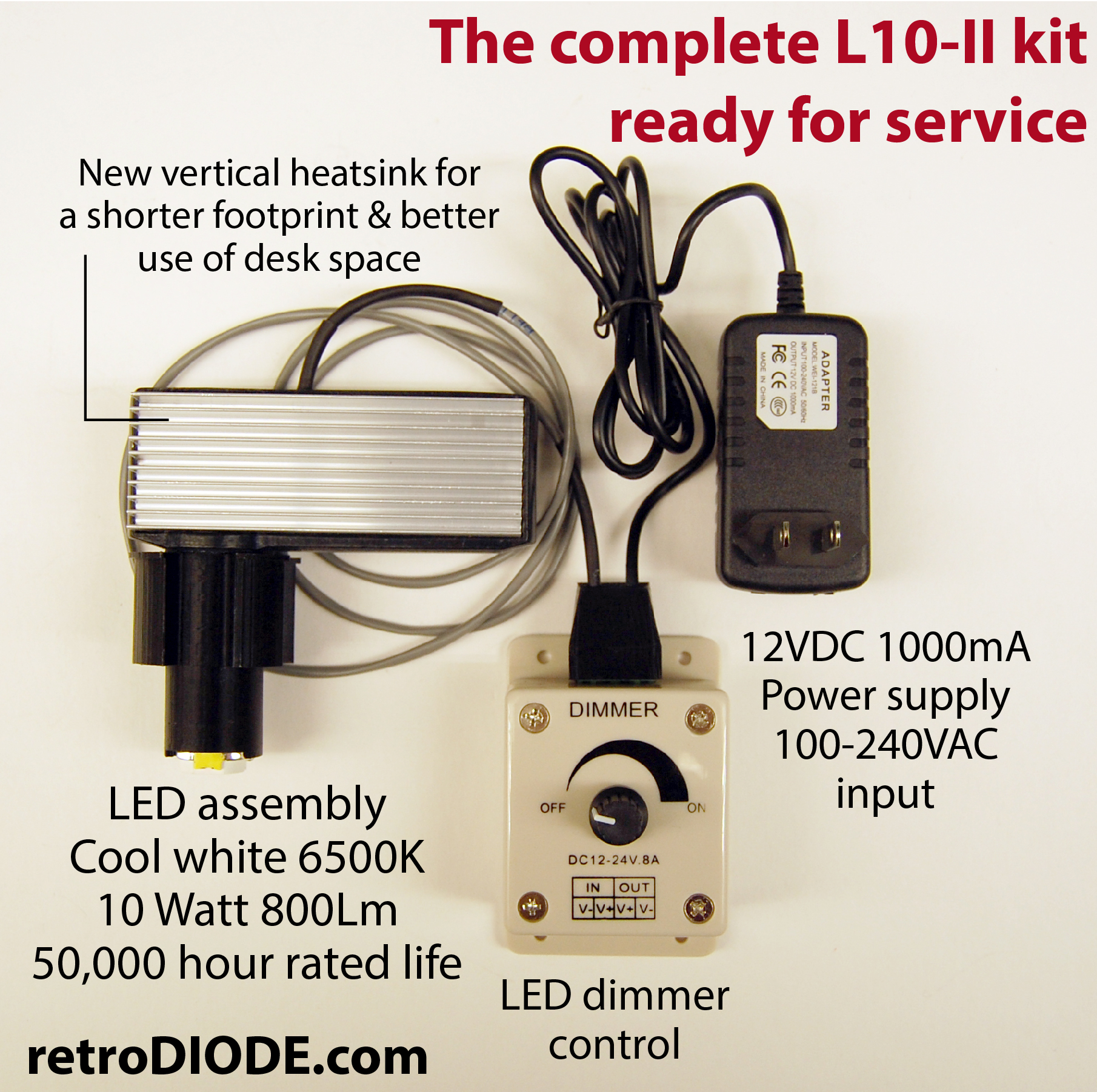

- Dimmer control box.

- 100 to 240 VAC 50-60hz input power supply.*

Note* Power supply has a USA plug configuration.
For other countries:
Only an inexpensive plug adapter is needed.
No power conversion is required.
We do not sell plug adapters with the kit.
They are very inexpensive. To order on ebay click the following:
(click here for more on plug adapters)

Consistency of LEITZ:

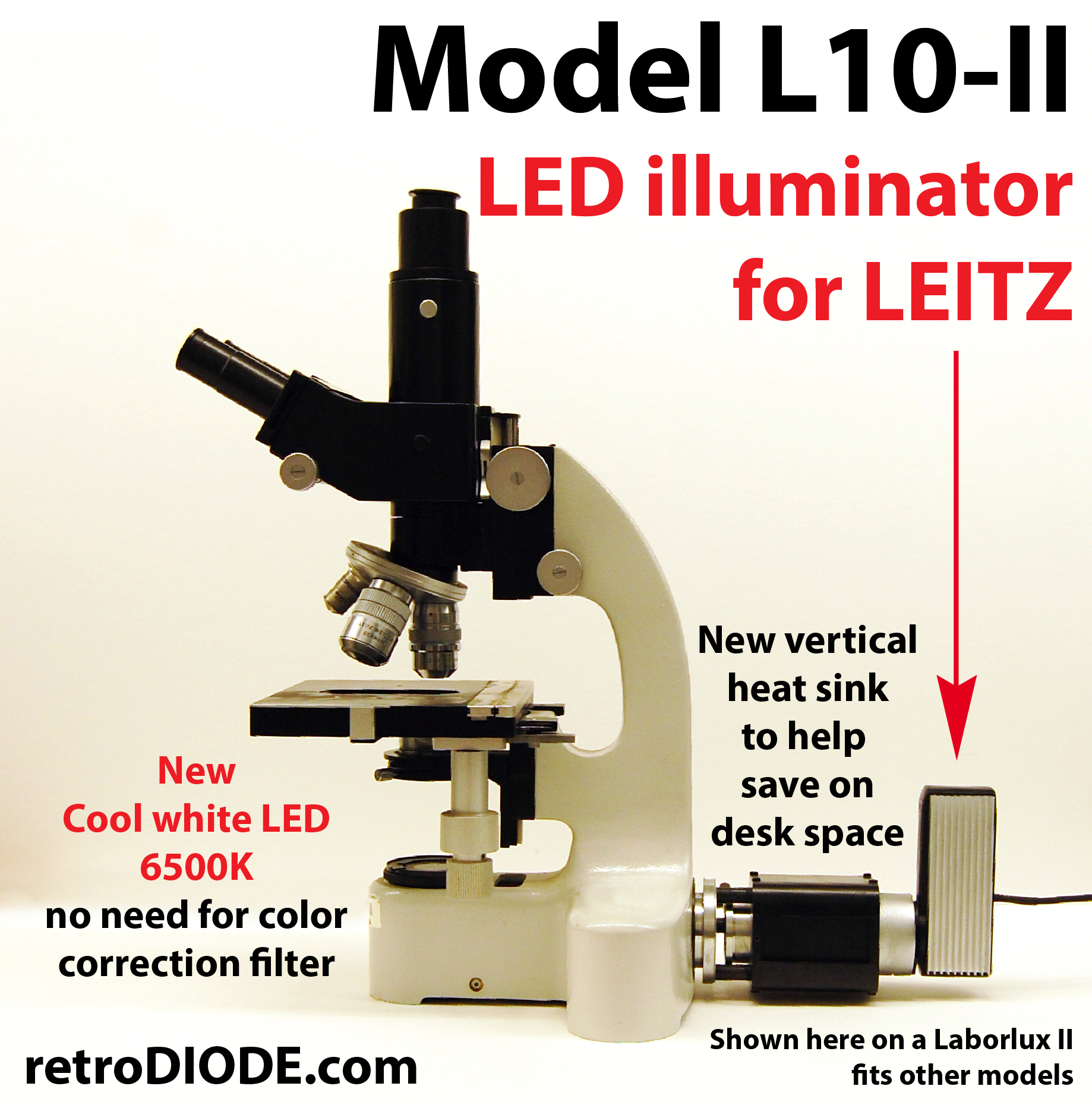

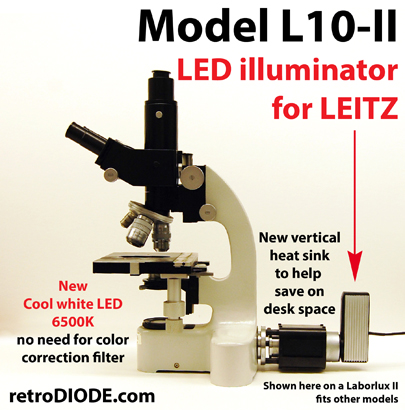

The depicted illuminator Lamp housing (top right image) was used over many years for several scope models. If your Leitz microscope has this type of lamp housing then our L10-II kit will fit.

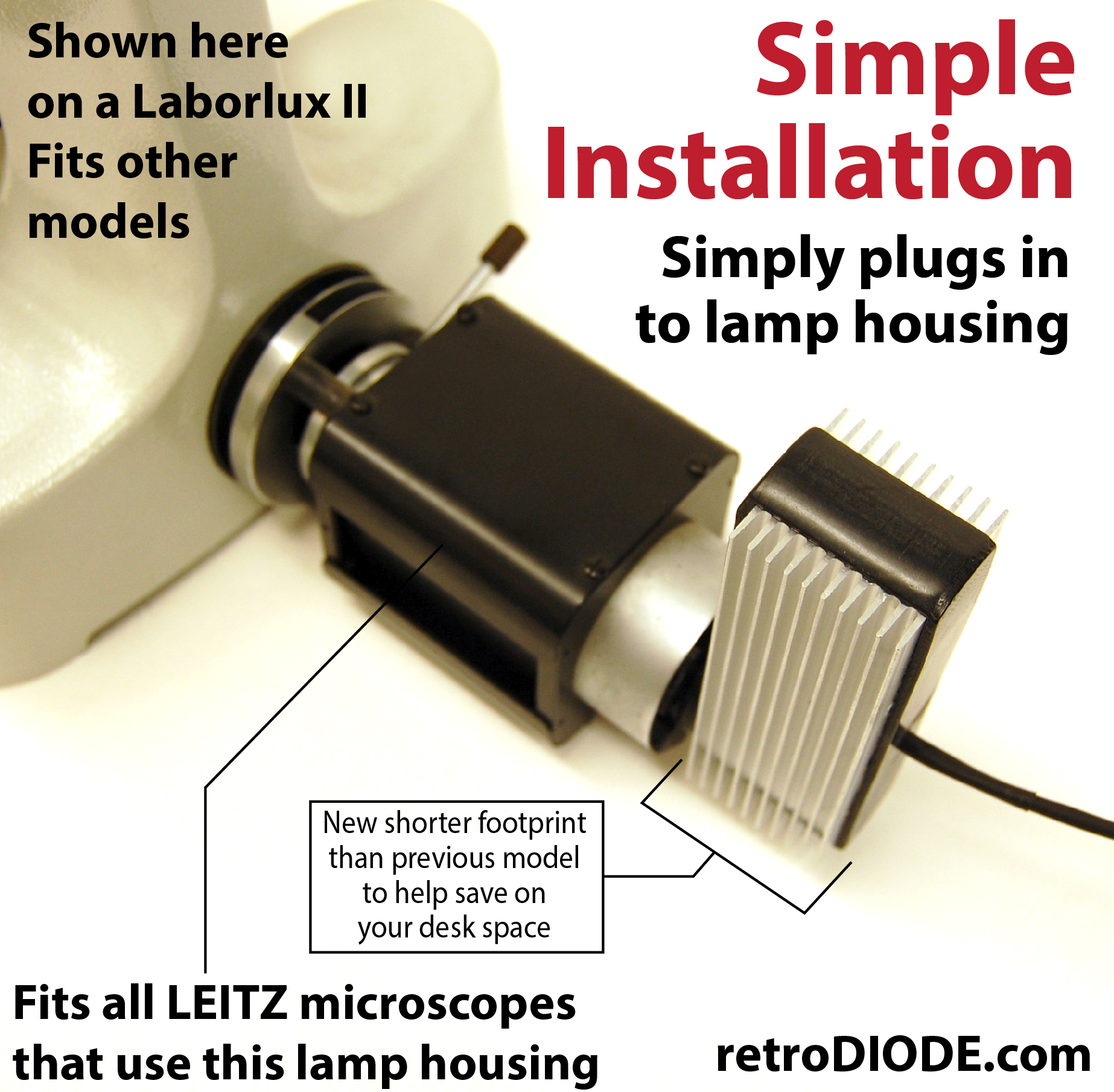

The collar in the back of the lamp housing comes in 2 forms: 1- that can tighten. (Click Here) and 2- seen here on the Labolux II without the tightening knob.
The L10-II kit will fit both of these collars.

Efficient & bright:
No wasted light from an inefficient bulb or the lack of reflectors. In the L10-II illuminator the LED faces forward to the collector optics inside the lamp housing so you get even illumination with more of the light generated by the LED.

This model is the next step in the LEITZ L10 models:

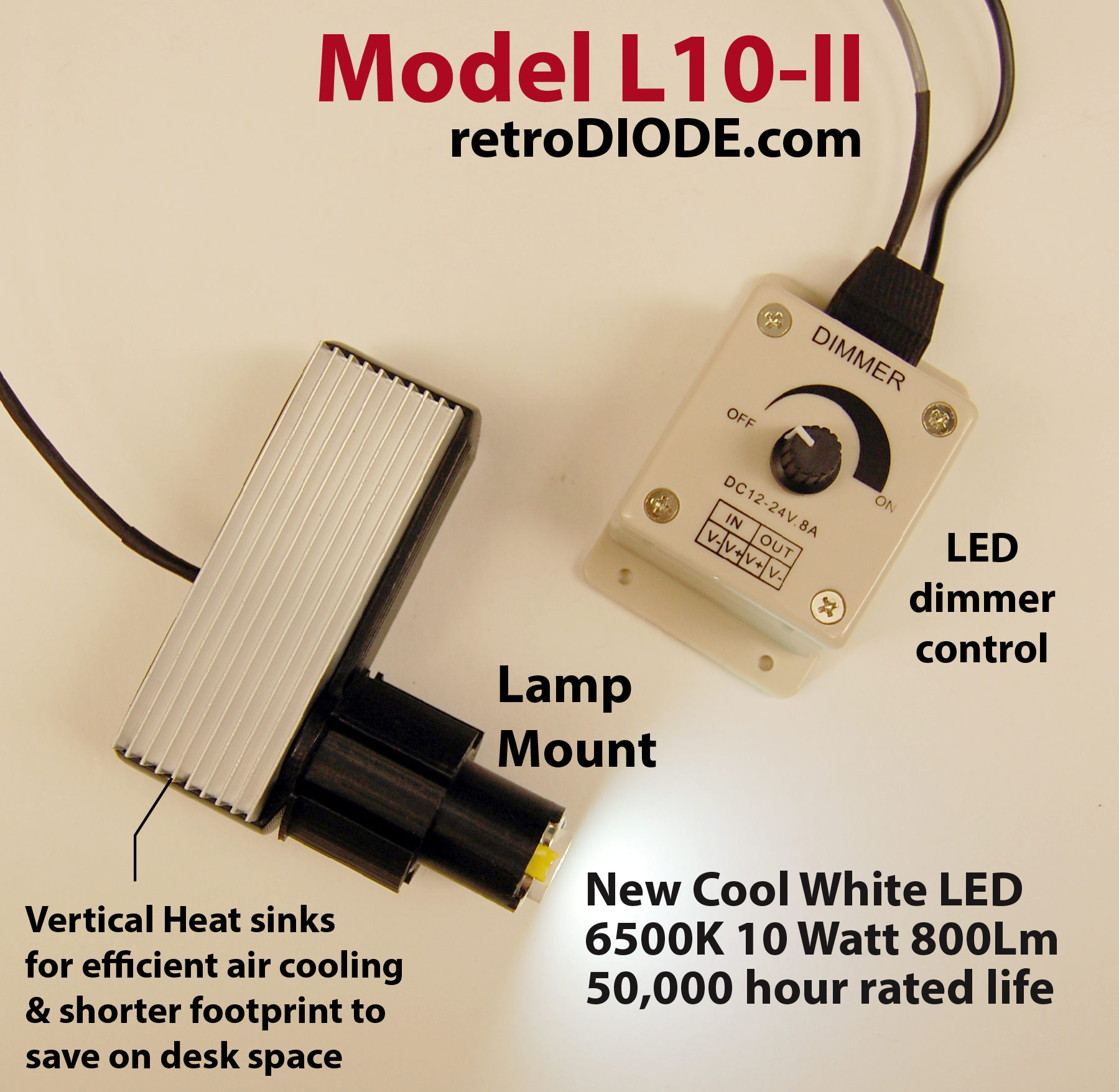

Vertical heatsink for an improved footprint to save some desk space and cool color temp for photomicroscopy and no need for color correction filter.

Fits Fits Dialux, Ortholux & Laborlux
May fit others. --see also our model L10
See photos-----
Click on photos to enlarge

Download Information sheet PDF
